LEKTRO AP8850SD – Finanzierungsleasing
Inseriert: 11Mo. 27Tg.
Inseriert: 11Mo. 27Tg.
France, Paris CDG Airport, FRANCEFOR AIRCRAFT UP TO 120,000 LBS/54,432 KG
incl. B737BBJ and AC320CJ
AP8850SD FEATURES:
Vehicle Drive: 45.3 HP/33.8 kW, 72 VD
Traction Motor mated with Auburn/Dana 44 Differential.
Motor Speed Control: EV-200 LX SCR with On-Board Diagnostics.
Speed controlled by Foot Throttle.

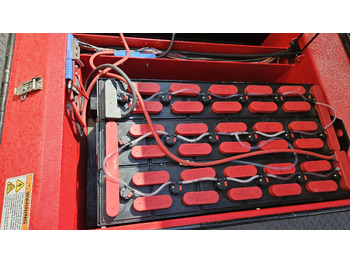

Batteries: Two 36 VDC Industrial, 440 AMP-HR Batteries (6 hr rate),
wired in series with Single Point Watering System. 550 AH, optional.
GPU: Built-in Independent 12/24/28 VDC / 1175 CCA Batteries and
Charging System, optional.
Motive Battery Charger: External Fully Automatic 90 AMP DC / 208-
480 VAC / 60 Hz / 3-PH Charger. 100 AMP and/or 50 Hz, optional.

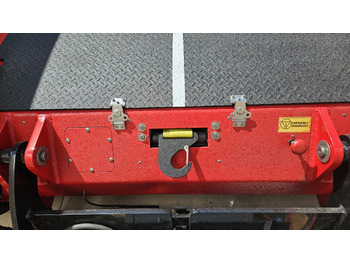

Nose Gear Lift Cradle: Patented Universal
Nose Gear Lift Cradle
activated by an Electric/Hydraulic Pump Assembly. Aircraft Selection
System and Patented Torque Sensing Turntable Cradle Deck, optional.
Winch: Heavy-duty Hydraulic Winch with Automatic Safety Cut-Off.
Winch and Strut Straps included.
Steering: Electric/Hydraulic Power Steering controlled through
Automotive-type Tilt Wheel requiring minimal effort with very responsive
steering action. Automatic Timer turns off power when tug not in use,
increasing battery shift life.
Service Brakes: Foot Operated Hydraulic Disc-Type
Service Parking Brake: Hand activated Electric Switch controlling Spring
Applied/Hydraulic Released Calipers mounted on each Service Brake Disc.
Drive Tires: Single 23 x 10 x 12 Solid-Pneumatic Traction Tread with
Siping. Chains, optional.
Steer Tires: 21 x 8-9 Solid-Pneumatic Traction Tread mounted to a
Fully Suspended Steer Axle.
Lighting: Dual Forward and Aft Headlights, Four Flashing Amber
Running Lights and Amber Strobe Light mounted Center Rear.
Brake Lights/Turn Signals and LED Bulbs, optional.
Operator’s Compartment: Operator and Passenger Seats, Forward
Facing, Premium Grade, Molded Polyurethane including Armrests.
Operator’s Seat features a Fully Suspended, Adjustable setting for
height, fore/aft and weight. Seat Belts, Dual Facing Operator’s Helm
